Scaff Ring Lock System
Scaff Ring Lock is a modular system scaffold with wedge fixing for all access scaffold requirements. The wedge fixing of the ledgers and transoms gives a simple and fast mean of erecting access
scaffolding without loose parts

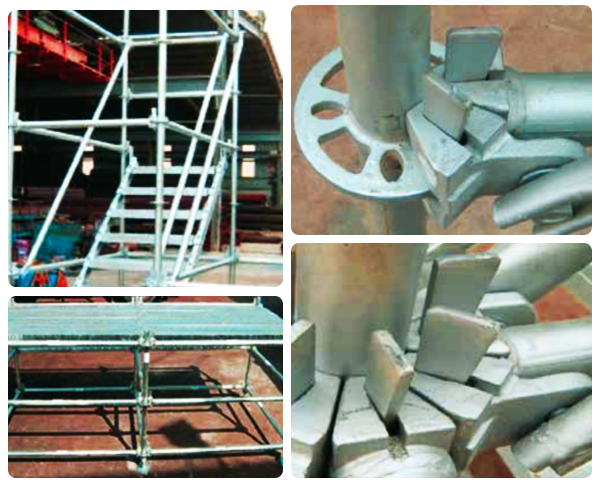

Rigid 1 Rosette with slots fixed with Ledger end gives a positive location without movement. Spigot and K-Ring starter fitting on the standard to give guaranteed vertical alignment. Quality primed hot dipped galvanized finish for maintenance free use
Conforms to BS1139 Part 5, HD 1000, OSHA, Australian, New Zealand Standards
Features and Benefits
- DURABILITY: There are no loose components on the Scaff Ring Lock scaffold system that can be lost or require maintenance.
- VERSATILITY: Scaffolding can be erected for straight, curved, or circular configuration for both access and support, and also for independent and mobile towers.
- MULTI-FUNCTIONAL: With the universal joint and fully interchangeable components, the ring system can be used in most construction projects (Civil & Building) for both falsework and access. Also concert staging and the Aviation industry.
- TENSILE STRENGHT: Both Scaff Ring Lock vertical standard and horizontal ledger are manufactured from 1.9″ outside diameter by gauge 10 high strength steel tubing with a minimum yield strength of 50,000 lbs/in² and a min.
Scaff Ring Lock Scaffolding Parts

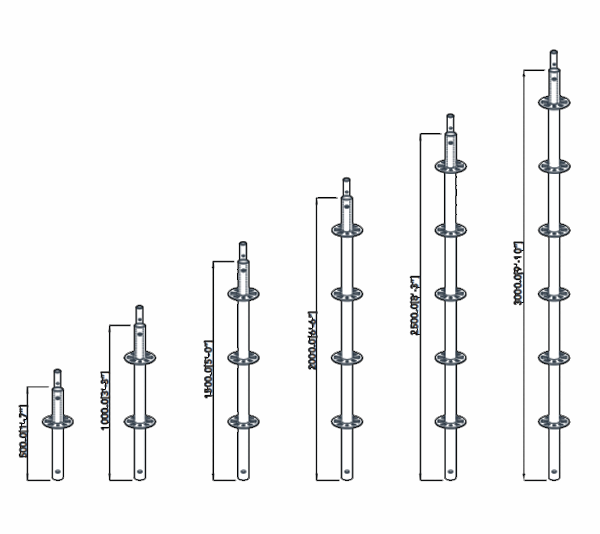

SCAFF RING LOCKSTANDARD
SCAFF RING LOCK Standards are manufactured from 1.90” S355 grade steel tube, complete with Rosettes welded at 19” (0.5m) intervals

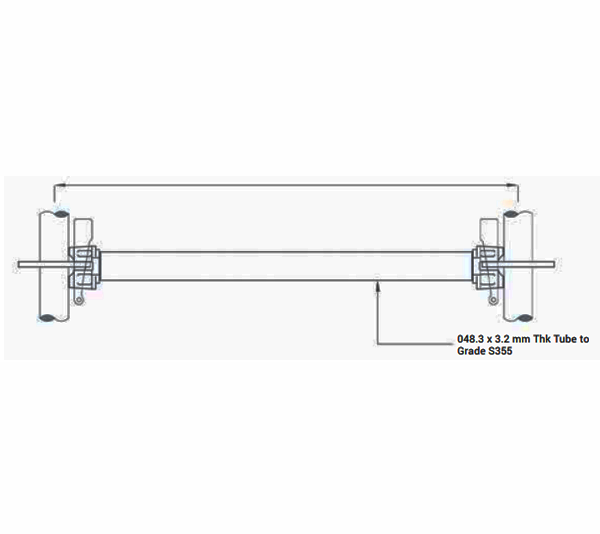

SCAFF RING LOCK LEDGER
Are made from 48.3 x 3.2 thick tube in Grade S355 With cast steel ledger ends with captive wedge. SCAFF RING LOCK Ledger transfer loads dir ectly to the standar d through the positive connection achieved bycaptive wedge.
SCAFF RING LOCKDIAGONAL BRACES</h
SCAFF RING LOCK Diagonal Bracing provide structural stability for system scaffolds and must be installed in accordance with industry guidelines
SCAFF RING LOCK DOUBLE LEDGERS
SCAFF RING LOCK Double Ledgers are used for heavy duty load conditions, available in different lengths.
TRUSSED LEDGERS
SCAFF RING LOCK Trussed Ledgers are used for heavy duty load conditions, available in dif ferent lengths.

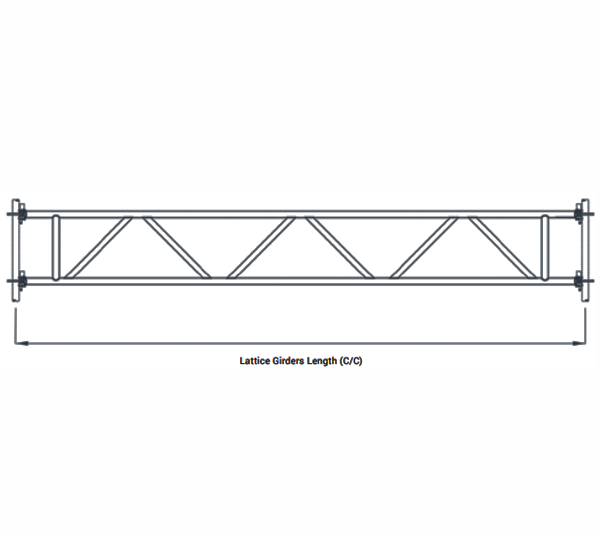

LATTICE GIRDERS
SCAFF RING LOCK Lattice Girders are used for heavy duty load conditions, available in different lengths.

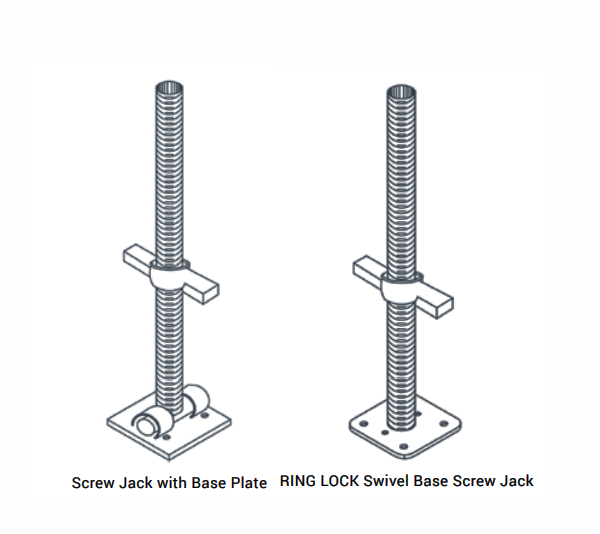

SCREW JACK
SCAFF RING LOCK Screw Jack must be used in the construction of system scaffold to ensure that standards and Ledgers are installed in level.

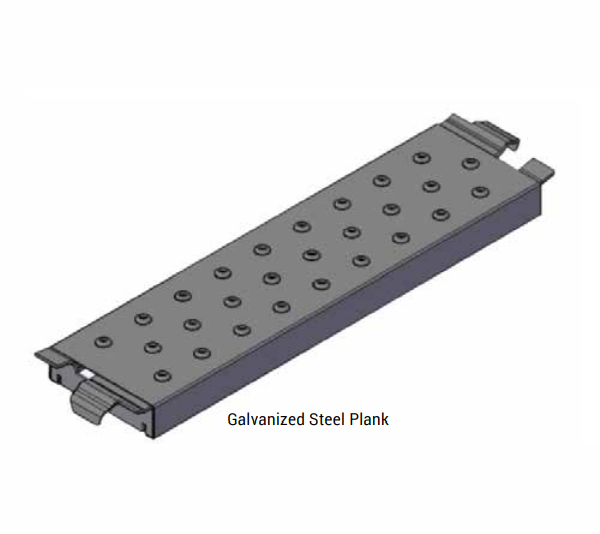

STEEL PLANK
SCAFF RING LOCK LSteel Planks are placed between the ledgers, pr oviding a working platform systems.

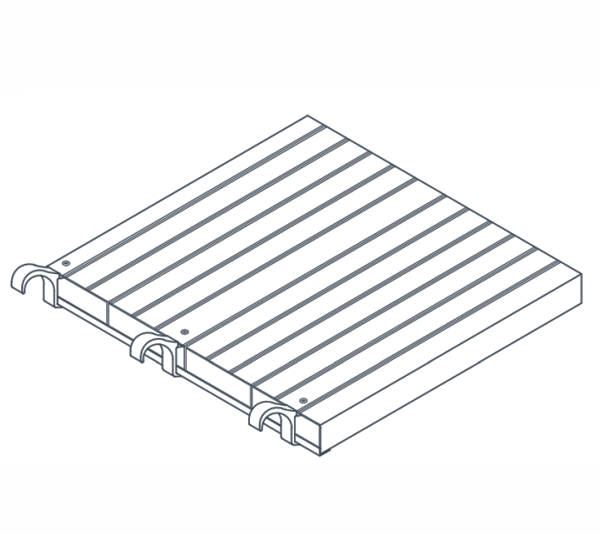

ALUMINIUM DECK
SCAFF RING LOCK Aluminium Deck are placed between the Ledgers, providing a working platform systems.

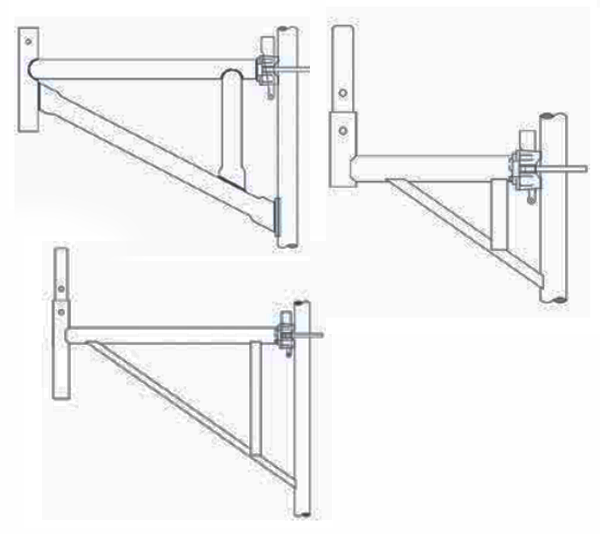

SIDE BRACKETS
SCAFF RING LOCK Side Brackets are used to extend the scaffold platforms 1, 2 (or) 3 boards of wide.
